TETRA PA Module BT-PA398-35M8W-RS485

Name: TETRA PA Module BT-PA398-35M8W-RS485
Brand: Shenzhen Suntor Technology Co., Ltd.
SKU: BT-PA398-35M8W-RS485
Price: 5500.00 USD
Availability: InStock

Productdetails

Plaats van herkomst: Shenzhen

Modelnummer: BT-PA398-35M8W-RS485

Betaling & het Verschepen Termijnen

Prijs: Price negotiable

Verpakking Details: karton

Levertijd: 35 dagen na PO

Betalingscondities: L/C, T/T

Krijg Beste Prijs

Contact opnemen

Specificaties

Beschrijving

Specificaties

Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                      380-415 MHz TETRA PA Module, 39 ± 1 dBm Output Power RF Power Amplifier Module, 50 ± 2 dB Gain TETRA RF Power Amplifier


De frequentie belde (Mhz):	380-415 MHz	Afmetingen:	200 × 140 × 28 mm
Winst (max.):	50 ± 2 dB	Uitgangsvermogen (max.):	39 ± 1 dBm
Bandbreedte (MHz):	35MHz	Ingangsvermogen (max.):	+10dBm

De frequentie belde (Mhz):	380-415 MHz
Afmetingen:	200 × 140 × 28 mm
Winst (max.):	50 ± 2 dB
Uitgangsvermogen (max.):	39 ± 1 dBm
Bandbreedte (MHz):	35MHz
Ingangsvermogen (max.):	+10dBm

Beschrijving

TETRA PA Module BT-PA398-35M8W-RS485

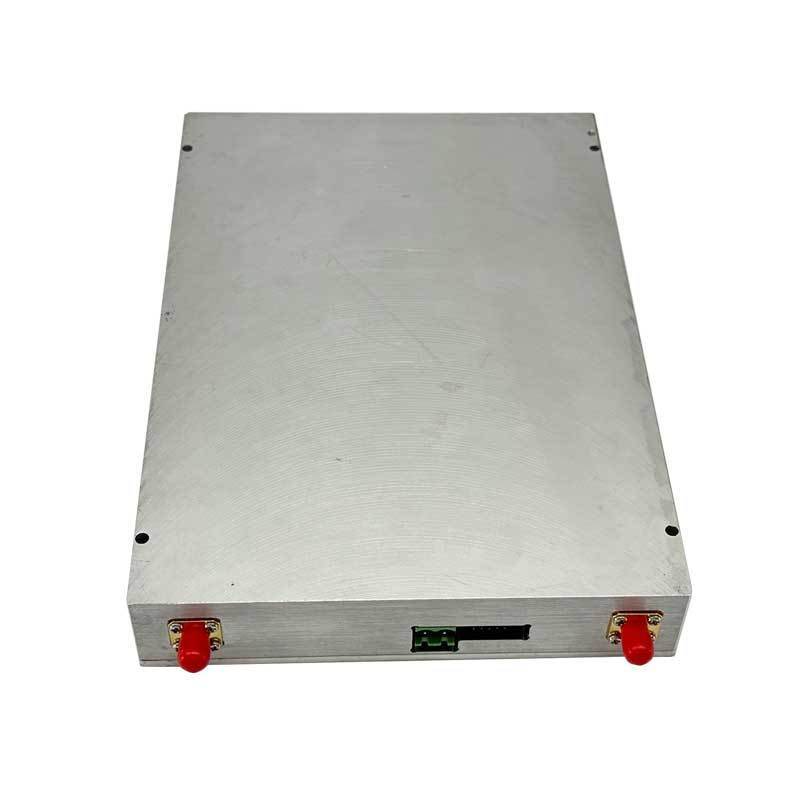

TETRA PA Module BT-PA398-35M8W-RS485 A 380–415 MHz TETRA RF power amplifier module designed for wireless communication systems, featuring 8 W maximum output power, up to 50 dB gain, adjustable gain control, ALC, and RS485 monitoring. Parameter Specification Frequency 380–415 MHz Output Power 39 ± 1 dBm / Max. 8 W Gain 50 ± 2 dB Max. Power Supply +28 V DC / ≤3.8 A Product Overview The BT-PA398-35M8W-RS485 is a TETRA RF Power Amplifier Module designed for the 380–415 MHz
