High-Speed COFDM Transmission Long-Range Wireless Mesh Network AES Encrypted Communication

Name: High-Speed COFDM Transmission Long-Range Wireless Mesh Network AES Encrypted Communication
Brand: Shenzhen Suntor Technology Co., Ltd.
SKU: MH33
Price: 5,500.00 USD
Availability: InStock

Productdetails

Plaats van herkomst: China

Merknaam: Suntor

Certificering: CE

Modelnummer: MH33

Betaling & het Verschepen Termijnen

Min. bestelaantal: 1SET

Prijs: onderhandelbaar

Verpakking Details: Karton

Levertijd: 7-15 dagen

Betalingscondities: T/T, Western Union

Levering vermogen: 5000PCS/Maand

Krijg Beste Prijs

Contact opnemen

Specificaties

Beschrijving

Specificaties

Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      COFDM wireless mesh network, long-range encrypted communication, AES encrypted IP mesh


Frequentiebereik:	1428 ∼ 1448 MHz	Bandbreedte:	5M/10M/20MHz
Transmissiesysteem:	COFDM	Gegevenssnelheid:	90Mbps@20MHz (piek)
Video-ingang:	Ethernet (HDMI/SDI voor optioneel)	Beveiliging:	AES128/256-codering
Voeding:	DC16.8V 3000mAh verwijderbare lithiumbatterij	Dimensie:	≤ 220 × 74 × 40 mm (met batterij)
gewicht:	≤ 850 g (met batterij)	Beschermingsniveau:	IP65

Frequentiebereik:	1428 ∼ 1448 MHz
Bandbreedte:	5M/10M/20MHz
Transmissiesysteem:	COFDM
Gegevenssnelheid:	90Mbps@20MHz (piek)
Video-ingang:	Ethernet (HDMI/SDI voor optioneel)
Beveiliging:	AES128/256-codering
Voeding:	DC16.8V 3000mAh verwijderbare lithiumbatterij
Dimensie:	≤ 220 × 74 × 40 mm (met batterij)
gewicht:	≤ 850 g (met batterij)
Beschermingsniveau:	IP65

Beschrijving

High-Speed COFDM Transmission Long-Range Wireless Mesh Network AES Encrypted Communication

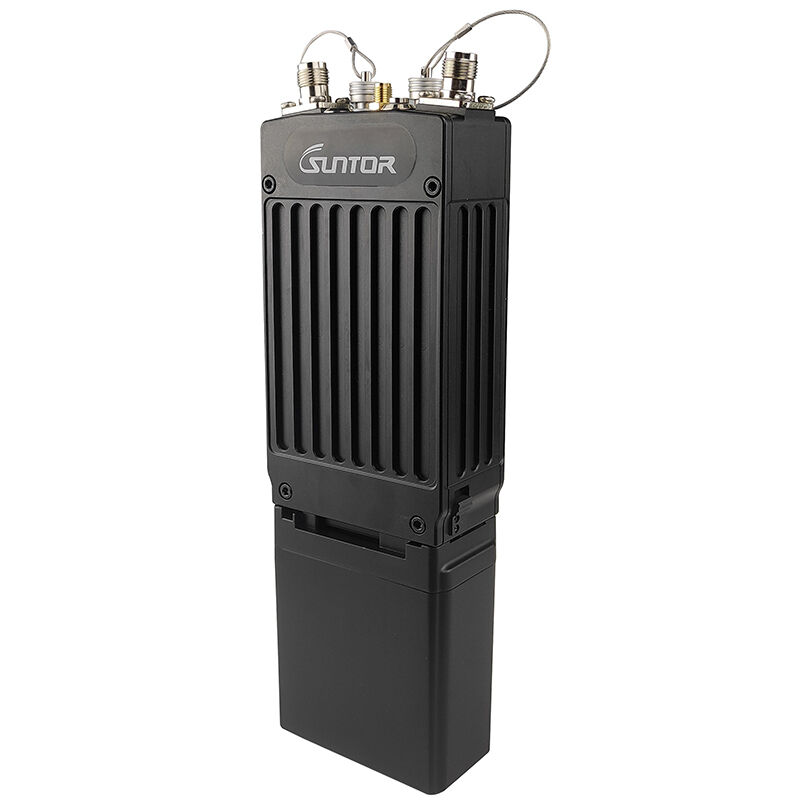

MH33 IP Mesh Network Compact Radio

Fast 5-second setup with 90Mbps secure transmission over 5KM range. A tactical MESH radio designed for handheld quick deployment applications, providing video surveillance, voice communication, data transmission, and IP flexibility in a private secure network.

Key Features

Compact Size for easy portability
2 Watt Transmit Power for strong signal
5 Seconds Quick Setup Time for rapid deployment
Supports More Than 52 IP Mesh Nodes
Up to 90Mbps Data Rate for high-speed transmission
AES128/256 Security Protection for encrypted communication
5KM Open Area Transmission Distance for long-range operation

Technical Specifications

System Parameters
Operating frequency	1428~1448MHz
Bandwidth	5/10/20MHz, Flexible and configurable
Transmission system	COFDM
Modulation mode	BPSK/QPSK/16QAM/64QAM (self-adaption)
Transmission capacity	Peak rate 90Mbps@20MHz
RF Transmitted power	2W
Receive Sensitivity	-97dBm@1MHz
Video input	Support IP network video input and WIFI video access
Networking capable	≥52 nodes
Networking hops	＞10 hops
Access time	5s after start up of the system
Network topology	Centerless network, star network, chain network, mesh network, etc
Encryption mode	AES128 / AES256
Power supply	DC 16.8V removable lithium battery
Power Consumption	≤30W
Equipment Interfaces
Antenna interface	TNC-K×2
GPS interface	SMA-K
WIFI interface	SMA-K
Ethernet interface	Aviation interface
Voice interface	Aviation interface
Physical Specifications
Dimension	≤200×74×39mm (include battery)
Equipment Weight	≤850g (include battery)
Protection degree	IP65
Operating temperature	-30℃～+65℃

Application Scenarios

Ideal for challenging underground environments like subway systems. Through chain relay and mesh network topology combinations in subway stations, enables rapid deployment of wireless multi-hop networks with relay transmission. Effectively solves wireless signal masking issues, achieving penetrating wireless communication between ground and underground levels. Provides reliable, stable, high-speed communication security for station staff while allowing freedom of movement. Serves as emergency backup transmission when operator public networks experience local failures.

Package Contents

Li-Ion Battery × 1

Battery Dock Charger × 1

OMNI Antenna × 2

GPS Antenna × 1

WIFI Antenna × 1

Remote Speaker Microphone × 1

Ethernet Cable × 1

AC Power Supply Cable × 1

Manpack Bag × 1
