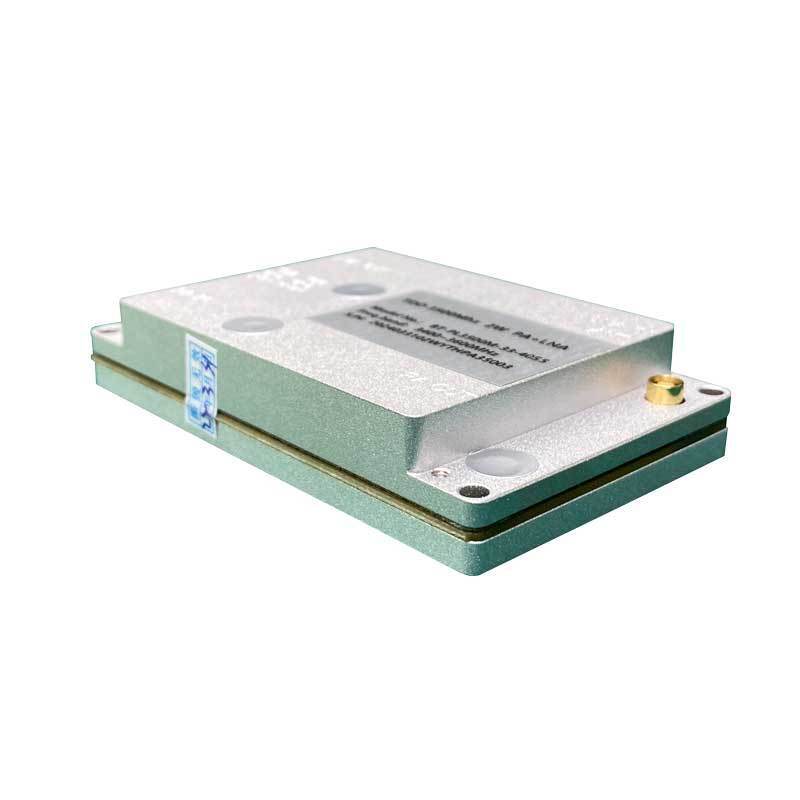

N78 2W PA Module BT-PL3645M-33-40S1 for TDD-LTE

Name: N78 2W PA Module BT-PL3645M-33-40S1 for TDD-LTE
Brand: Shenzhen Suntor Technology Co., Ltd.
SKU: BT-PL3645M-33-40S1
Price: 5500.00 USD
Availability: InStock

Productdetails

Plaats van herkomst: Shenzhen

Modelnummer: BT-PL3645M-33-40S1

Betaling & het Verschepen Termijnen

Prijs: Price negotiable

Verpakking Details: karton

Levertijd: 35 dagen na PO

Betalingscondities: L/C, T/T

Krijg Beste Prijs

Contact opnemen

Specificaties

Beschrijving

Specificaties

Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                      33 ± 1 dBm Output Power RF Power Amplifier Module, 40 ± 1 dB PA Gain PA Module, 3490–3800 MHz Frequency TDD-LTE Amplifier


RF -connector:	MCX Vrouwelijk	PA-winst:	40 ± 1 dB
Frequentie:	3490–3800 MHz	PA-uitgangsvermogen:	33 ± 1 dBm
LNA-winst:	20 ± 1 dB	Afmetingen:	80 × 49,5 × 15 mm

RF -connector:	MCX Vrouwelijk
PA-winst:	40 ± 1 dB
Frequentie:	3490–3800 MHz
PA-uitgangsvermogen:	33 ± 1 dBm
LNA-winst:	20 ± 1 dB
Afmetingen:	80 × 49,5 × 15 mm

Beschrijving

N78 2W PA Module BT-PL3645M-33-40S1 for TDD-LTE

N78 2W PA Module BT-PL3645M-33-40S1 for TDD-LTE A compact N78 TDD-LTE PA/LNA module designed for reliable RF signal amplification and wireless communication systems. Parameter Specification Frequency 3490-3800 MHz PA Output Power 33 ± 1 dBm PA Gain 40 ± 1 dB LNA Gain 20 ± 1 dB Product Overview The BT-PL3645M-33-40S1 is a N78 TDD-LTE 2W PA module with an integrated LNA , operating across the 3490-3800 MHz frequency range. It integrates transmit power amplification and receive
